1/300 Inch 8 Rows 3200 Nozzle Sublimation Inkjet Printer
|Ink Type||Aqueous||Type||PrecisionCore MicroTFP Printhead|
|Width * Depth * Height||69.1x 59.4 X 35.6 Mm||Weight||82 G|
|Nozzle Quantity||3200||Nozzle Pitch/nozzle Row||1/300 Inch|
|Nozzle Rows||8 Rows||Nozzle Resolution||300 Npi /row 600 Npi/2 Rows|
|Max. Number Of Colour Inks||4 Colours|
3200 Nozzle Sublimation Inkjet Printer,
8 Rows Sublimation Inkjet Printer,
1/300 Inch Sublimation Inkjet Printer

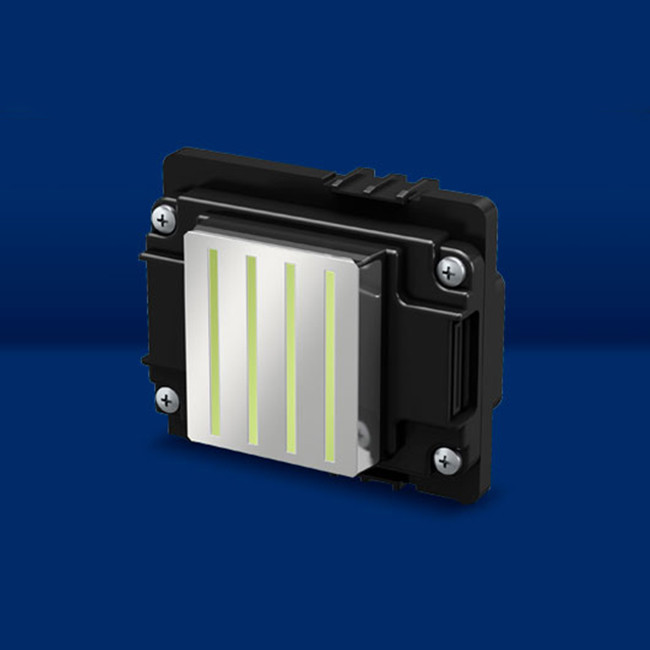

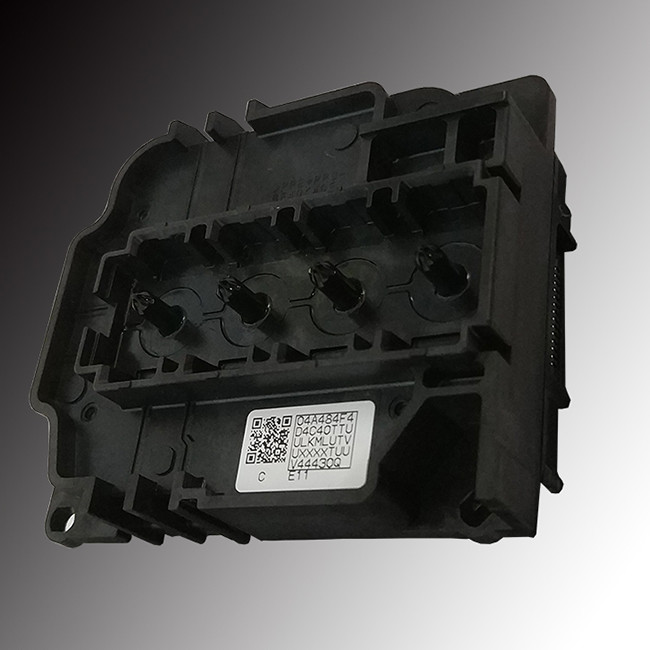

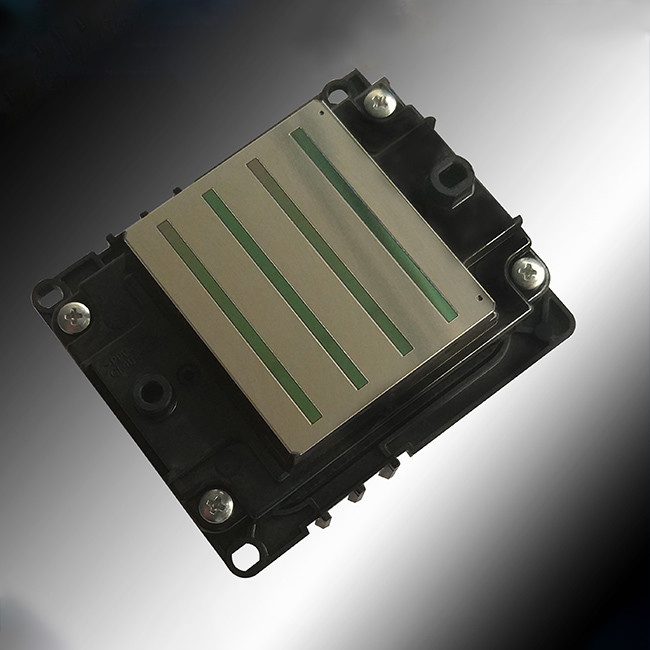

Sublimation Inkjet Printer Printhead Original I3200 - A1 Printhead For Eps on
The Eps on 4720 printhead (or EPS3200 as it is also known) is a new piezoelectric nozzle introduced by Eps on in recent years ,
the main technical parameters of Eps on 4720 printhead are basically the same as Eps on 5113 printhead.The difference is that
the 5113 can only be used with water-based ink , while the Eps on 4720 is corrosion-resistant , suitable for ink, such as water , oil ,
solvent , UV , dope , heat sublimation, etc. , it is a multi-purpose sprinkler head .
Sublimation Inkjet Printer Printhead Feature Of Eps on I3200 - A1
1. PrecisionCore Technology
a. All MEMS manufacturing and thin film piezo element can realize high precision and high density(600 npi / 2 rows of nozzles).
Contributes to compact, high speed, high quality, and high image quality.
b. Precision made of Eps on unique MEMS nozzles and an ink flow path ensure the per fectly round ink droplets are placed
accurately and consistently.
2. Support for grey-scale
Eps on's unique Variable Sized Droplet Technology (VSDT) delivers smooth gradation by freely control to eject the droplet volume.
3. High resolution
Ink ejection of up to 4 colours realize with high resolution (600 dpi/colour). In addition to the I3200, I1600 has also been added to
the lineup in order to meet the various customer needs.
4. High durability
PrecisionCore print head has proven high durability and extended service life by Eps on's industrial printers.
Inkjet Printer Printhead Eps on I3200 - A1 Parameters
|Type||PrecisionCore MicroTFP Printhead|
|Width * Depth * Height||69.1 * 59.4 * 35.6 mm|
|Nozzle Pitch/Nozzle Row||1/300 Inch|
|Nozzle Rows||8 Rows|
|Nozzle Resolution||300 npi/row 600 npi/2 rows|
|Max.Number Of Colour Inks||4 colours|
|Effective Print Width||33.8mm (1.33 inches)|
|Jetting Frequency||43.2 kHz (Single Mode)|
|21.6 kHz (Multi Modes)|
|Droplet Volumes||5 pl (Single Mode)|
|6 , 12.5 pl (Multi Mode)|
|Viscosity Range||5 - 7 mPa|
|Positioning Mechanism||Reference Hole|
Printer Printhead Eps on I3200 - A1 Sizes
Nozzles(mm) External Dimensions
1. Printhead in your printer, if you don’t use it in short time, you should cleaning head in every 2 or 3 days. When you cleaning
the head, please printing the head test first and make sure it’s state is normal, because we should ensure the capping core
and head is sealed well.
2. Printhead is not in your printer, if the time within 2 days, just put head in the box and needn’t cleaning.
3. Printhead is not in your printer for a long time, you need cleaning at least 2 times. Doing second cleaning after 12 hours
when finished first cleaning. Ensure the head has been cleaned well and then inject the protection liquid into the head and put it
in the box to storage.
