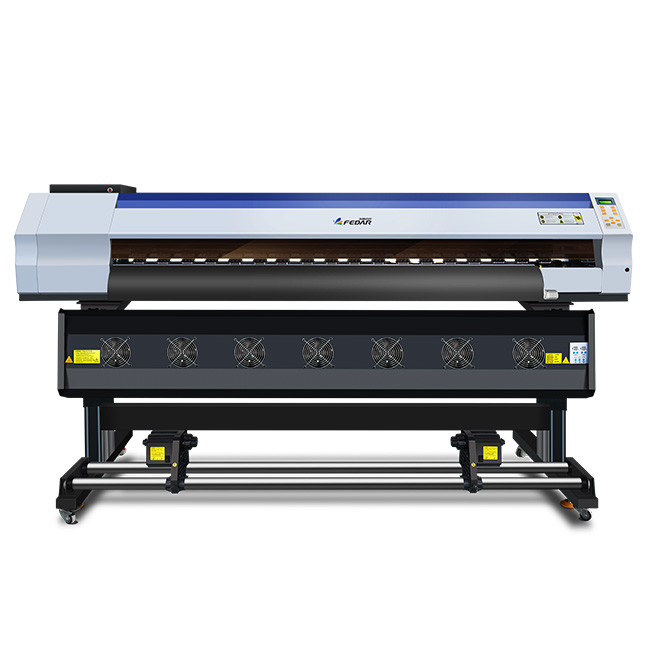

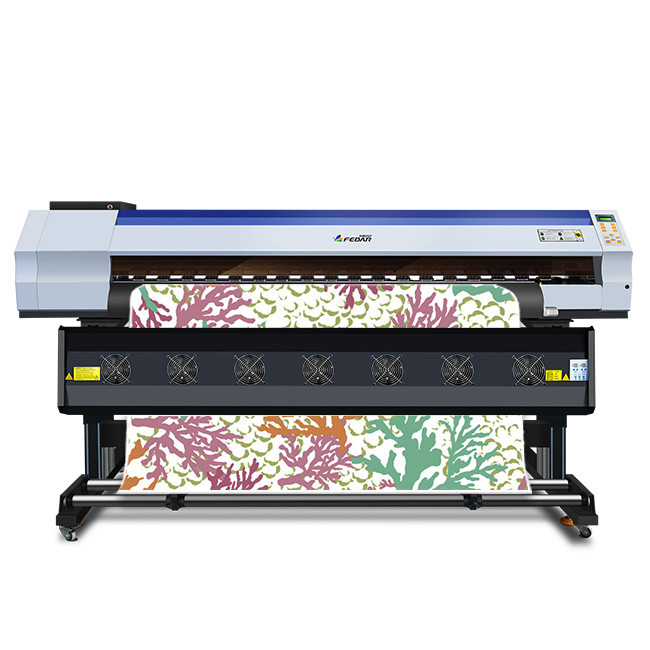

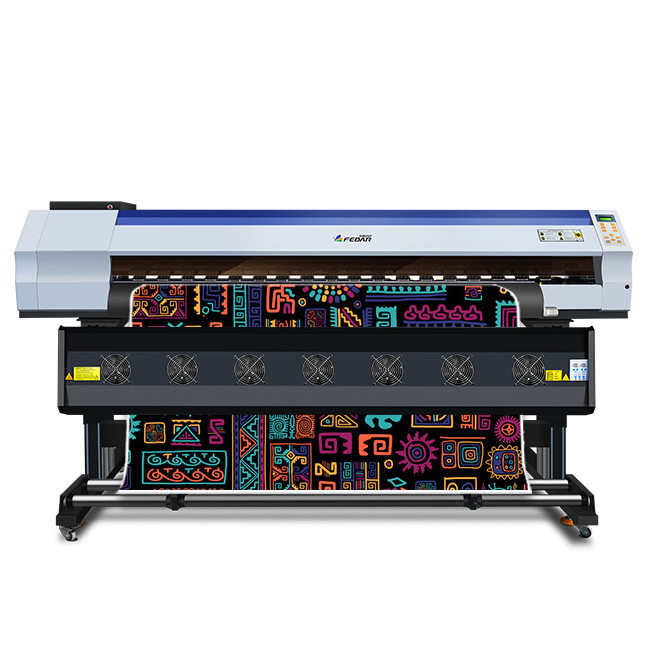

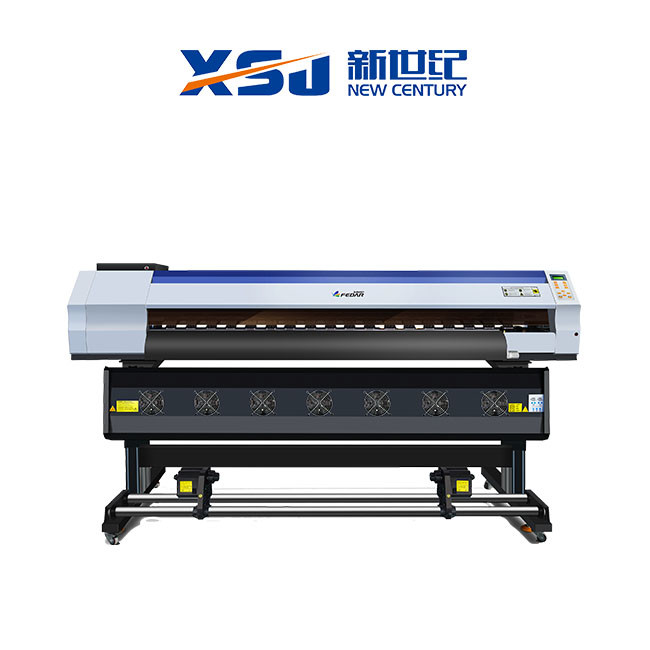

1900mm Sublimation EPS 4720 Digital Printing Plotter

  • 1900mm Sublimation EPS 4720 Digital Printing Plotter
  • 1900mm Sublimation EPS 4720 Digital Printing Plotter
  • 1900mm Sublimation EPS 4720 Digital Printing Plotter
  • 1900mm Sublimation EPS 4720 Digital Printing Plotter
Place of Origin CHINA
Brand Name Fedar
Certification CE
Model Number FD1900
Minimum Order Quantity 1 Set
Price USD5000-7000/SET
Packaging Details EXPORT CRATE
Delivery Time 7-10 DAYS
Payment Terms T/T
Supply Ability 20 SETS PER DAY
Product Details
Printhead EPS 4720 Ink Supply System Siphon Positive Ink Supply System
Max Printing Width 1.9m Head Quantity Dual Heads
Application Blue Paper/ 60gram Transfer Paper Printing Ink Type Water Based Pigment/Sublimation Ink
Package Export Crate
High Light

Sublimation Digital Printing Plotter

,

EPS 4720 Digital Printing Plotter

,

1900mm Sublimation Plotter
Leave a Message
Product Description

Sublimation Digital Printing Plotter

Parameter



Sublimation Digital Printing Plotter
Printhead Epson4720 Nozzle Quantity 3200
Printhead Quantity 2 Print Width 1900mm
Ink Color CMYK Print Height 2-5mm
Resolution 360*1200/360*1800/
720*1200/720*1800(DPI)		 Media Transfer Auto Taking-Up Meida Unit
Speed
*Tested on linear printing without feather function		 2pass 98㎡/h Drying Method External Dryer Unit
3pass 64㎡/h Ink Supply Method Siphon Positive Pressure Ink Supply
4pass 50㎡/h Head Moisture
Method		 Auto Head Cleaning and Moisturize
6pass 32㎡/h Print Media Transfer Paper
Ink Type Sublimation Ink,
Water based Pigment Ink		 Transmission
Interface		 Gigabit LAN
Computer System Win7, Win8, Win10(Professional) File Forms TIFF, JPG, EPS, PDF, etc.
Operate Environment Temp.:15℃-30℃, Humidity: 35℃-65℃ RIP Software NeoStanpa,Ergosoft,
Onyx,Photoprint,Maintop
Package Size 3250*960*1170mm Power Supply 210-230V, 50/60HZ, 16A
Print Power: 1000W
Dryer Power: Max.3500W
Computer Configuration Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
Memory: 4G, CPU: Inte I5/I7, G-Ethernet
Standard Configuration Ink Level Alarm System

Printhead Technology & Advantages

Double EPS3200 Printheads, Max Speed 80 sqm/hr.



A.Printing width of EPS3200 head is 1.3 inches,about 30% wider than DX5, 3200 nozzles(400*8lines),which has

  much higher speed and resolution than Dx5.

B.EPS3200 printhead adopts TFP technology,with the smallest droplet 2.5PL,variable dots technology,can

  ensure perfect and high resolution printing performance.

C.Low replacement cost,each head is about 300-350USD,which helps client reduce cost to get more benefit!



Zhengzhou New Century Digital Technology Co., Ltd.,

Feature Detail Show

1. Specially Designed Carriage

1) Patented designed carriage frame, staggered head location.

2) featured head crack protection unit and media detecting function.

3) Special designed head vertical and horizontal calibration unit, which is simple on head position callibration.

1900mm Sublimation EPS 4720 Digital Printing Plotter 1

2. Finish Machining Aluminum Beam and Platform

1) Finish Machining Industrial-grade aluminum alloy platform guarantees long life and efficient printing.

2) Special designed pinch roller, each roller can be lifted seperately.



1900mm Sublimation EPS 4720 Digital Printing Plotter 2



3. Patented Maintenance Capping Station

Patented designed maintenance capping station. It is lifted up and down via column driven by motor in the

middle, which greatly maintain the balance of capping comparing the traditional gear drive.



1900mm Sublimation EPS 4720 Digital Printing Plotter 3



4. 3L Bulk Tank with level alarm

1) Bulk tanks with 3L capacity make sure the continuous ink supply. Sub-tank is to keep all color ink alway

at same level

2) Ink Starving Alarm is equipped, when ink level is lower than the sensor level, buzzer will be give alarm to

operator to refill ink.

3) each tank with a filter, which helps filter the inpurities from ink.



1900mm Sublimation EPS 4720 Digital Printing Plotter 4



Application

1900mm Sublimation EPS 4720 Digital Printing Plotter 5

With help of heat transfer machine,printed images can be transferred to many different non-elastic material,

such as polyester,chiffon, silk, and flag banner. No limit on the patterns makes it a good choice in decoration,

garment and advertising field.
