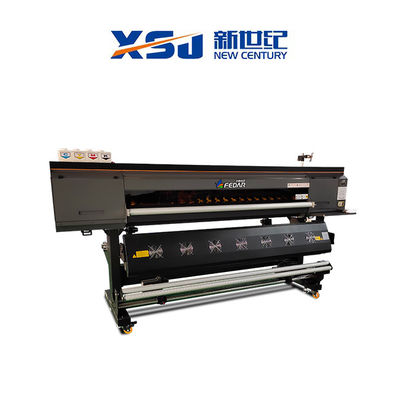

1900mm 120sqm/H Digital Eco Solvent Printing Machine

Place of Origin China
Brand Name Fedar
Certification CE
Model Number FD5193E
Minimum Order Quantity 1 Set
Packaging Details Export Wooden Crate
Delivery Time 7-10 Work Days
Supply Ability 200 Per Month
Product Details
Printhead Type Epson I3200-A1 Quantity 3 Pcs
Printhead Resolution 3200DPI Printing Speed 120Sqm/h
Print Width 1900mm Ink Dye Ublimation Ink,Pigment Ink
Media Transfer Paper,Poster Paper RIP Software Maintop,Photoprint,Neostampa,Onyx,etc
Warranty 12 Months
High Light

Digital Eco Solvent Printing Machine


120sqm/H Eco Solvent Printing Machine


1900mm Eco Solvent Printing Machine

Leave a Message
Product Description

FD5193E High 120sqm/H Speed Large-Format Digital Eco-Solvent Printing Machine​

Our sublimation printer is used to make textile products, such as blanket, polyester dress, plush toys and so

on. It prints on sublimation papers first, then heat transfer the pattern to the fabric you want. Automatic printing

and dye sublimation ink make the pattern colors bright, strong and fantastic.


FD5193E Eco-Solvent Printing Machine​ Parameter

FD5193E Fedar Sublimation Transfer Paper Printing Printer
Epson I3200-A1
Nozzle Quantity
Printhead Quantity
Print Width
Ink Color
Print Height
Media Transfer
Auto Tension Taking-Up Media Device
*Tested on linear printing without feather function
Drying Method
Extra Dryer Device
Ink Supply Method
Siphon Positive Pressure Ink Supply
Head Moisture Method
Auto Head Cleaning and Moisturize
6pass 45㎡/h
Print Media
Transfer Paper
Ink Type
Sublimation Ink,
Water based Pigment Ink
Gigabit LAN
Computer System
Win7, Win8, Win10
File Forms
Operate Environment
Temp.:15℃-30℃, Humidity: 35℃-65℃
RIP Software
Package Size
Power Supply
210-230V, 50/60HZ, 16A
Print Power: 1000W
Dryer Power: Max 3500W
Computer Configuration
Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
Memory:4G,CPU: Inte I5/I7, G-Ethernet
Standard Configuration
Ink Level Alarm System



FD5193E Printing Machine​ Feature

*  High Precision Printhead

3 Epson3200 printhead,2 pass speed can reach up to 120sqm/h.

*  Advanced Capping Station

Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink well and keep the

ink flow fluently.

*  Intelligent Ink Starving Alarm

Reduces the tediousness of frequently checking the remaining amount of ink and at the same time reminds to add ink in

time to ensure the continuity of printing work.

*  Intelligent Foggy Printing&VSDT

Printing Unique two-dimension intelligent foggy and wave-foggy function and VSDT variable droplet technology,improve

printing quality obviously.

*  Stable Media Feeding and Take-up System

Convenient and fast,the printing media is quickly stored,equipped with auto paper measurement and anti-rubbing function,

the consumables are warped,printing is automatically paused to prevent scratching the printhead.

*  Wide Application

With the help of heat transfer machine,printed images can be transferred to many different non-elastic material,such as polyester,

chiffon,silk and flag banner.No limit on the patterns makes it a good choice in decoration,garment and advertising field.

High 120sqm/H Speed Eco-Solvent Printing Machine​ Detail

1900mm 120sqm/H Digital Eco Solvent Printing Machine 0


1.Capping Station:

Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink well and keep

the ink flow fluently.

2.Ink Tank:

Adopt two-level ink supply system, continuous printing for a long time to ensure the output quality of the picture.

3.Pinch Roller:

US fluororubber pressure roller prevents static electricity from flying ink, prints more accurately and rejects wrinkles.


The high quality of Leadshine motor makes the synchronous wheel turn more smoothly.




Fedar High Quality Eco-Solvent Inkjet Printer Application

Sublimation transfer is widely used on digital polyester printing, which is vivid on color, no need make plate,no waste

generated, no quantity request, even small quantity of order or customized order can be processed.


1900mm 120sqm/H Digital Eco Solvent Printing Machine 1
                 Sportwear                                    Indoor Decoration                                   Bedding

1900mm 120sqm/H Digital Eco Solvent Printing Machine 2
                     Bags                                   Underwear and swimwear                               Socks
