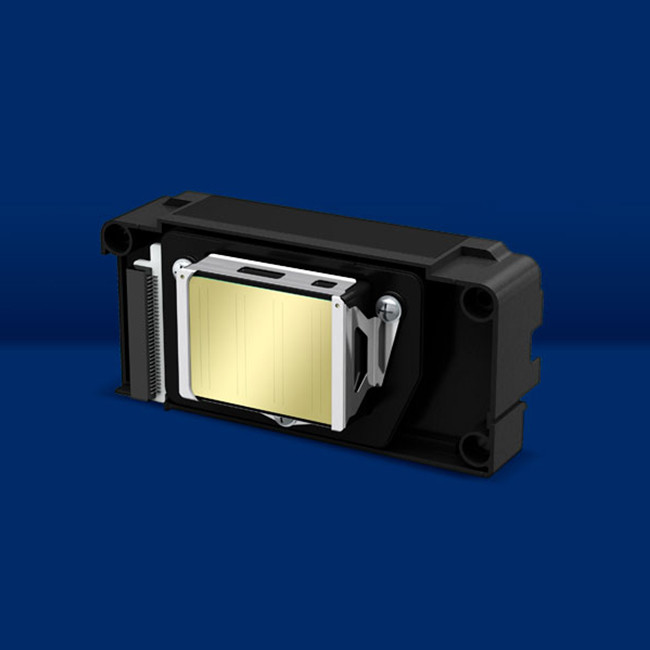

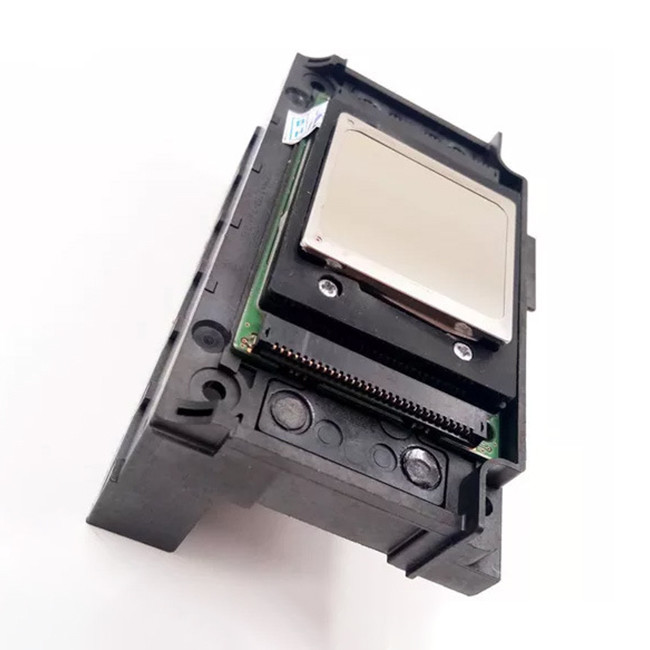

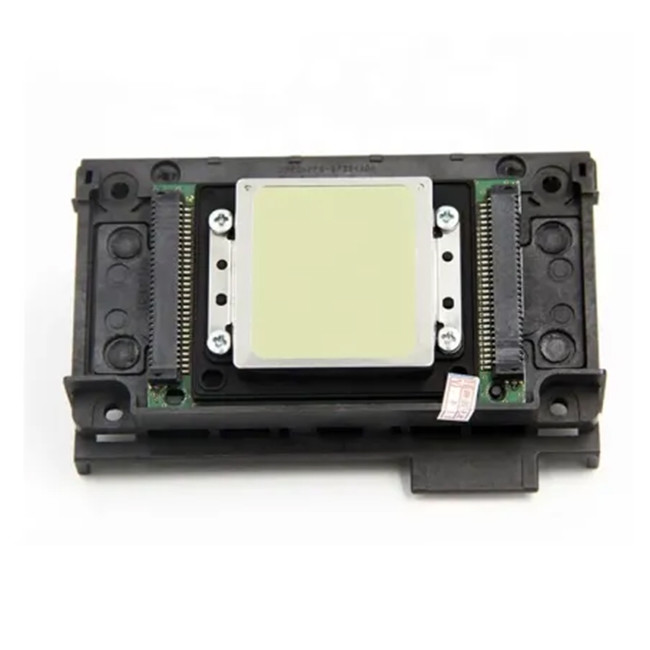

180npi 180 Inch TFP Printhead Sublimation Inkjet Printer
|Ink Type||Aqueous||Type||PrecisionCore MicroTFP Printhead|
|Width * Depth * Height||160 X 49.7 X 41.7 Mm||Weight||97 G|
|Nozzle Quantity||1440||Nozzle Pitch/nozzle Row||180 Inch|
|Nozzle Rows||8 Rows||Nozzle Resolution||180 Npi /row 360 Npi/2 Rows|
|Max. Number Of Colour Inks||8 Colours|
TFP Printhead Sublimation Inkjet Printer,
180 Inch Sublimation Inkjet Printer,
180npi Sublimation Inkjet Printer
Sublimation Inkjet Printer Printhead Feature Of Eps on F1440 - A1
1. PrecisionCore Technology
MACH(Multi Layer Actuator Head technology has realized high precision and high density(360npi/2 rows)printing.
Multi-head splicing can save space, reduce the moving distance of sprinkler head during printing, and improve production
3. Support for grey-scale
Eps on's unique VSDT (Variable ink droplet technology) allows you to freely control the size of the spray droplets, thus
reducing the image granularity and providing more detail, smooth color transition and high saturation.
4 color output, 360dpi / color resolution ,8 color output, resolution 180dpi / color.
5. High durability
Print head because of its high precision processing technology, durability is excellent.It has been optimized for use in many
commercial and industrial printing fields to achieve high speed output and high quality printing.
Inkjet Printer Printhead Eps on F1440 - A1 Parameters
|Type||PrecisionCore MicroTFP Printhead|
|Width * Depth * Height||106 * 49.7 * 41.7 mm|
|Nozzle Pitch/Nozzle Row||180 Inch|
|Nozzle Rows||8 Rows|
|Nozzle Resolution||180 npi/row 360 npi/2 rows|
|Max.Number Of Colour Inks||8 colours|
|Effective Print Width||25.4mm|
|Jetting Frequency||43 kHz (Single Mode)|
|14.4 kHz (Multi Modes)|
|Droplet Volumes||3.8 - 7 - 14 - 22|
|Viscosity Range||4 - 5 mPa|
|Positioning Mechanism||Reference Hole|
Printer Printhead Eps on F1440 - A1 Sizes
1. Printhead in your printer, if you don’t use it in short time, you should cleaning head in every 2 or 3 days. When you cleaning
the head, please printing the head test first and make sure it’s state is normal, because we should ensure the capping core
and head is sealed well.
2. Printhead is not in your printer, if the time within 2 days, just put head in the box and needn’t cleaning.
3. Printhead is not in your printer for a long time, you need cleaning at least 2 times. Doing second cleaning after 12 hours
when finished first cleaning. Ensure the head has been cleaned well and then inject the protection liquid into the head and put it
in the box to storage.
