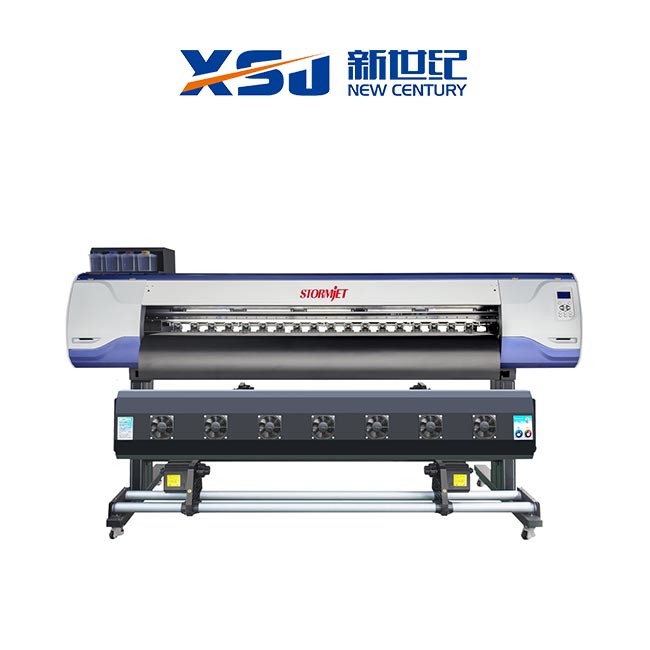

180cm Stormjet F1 Eco Solvent Printer With EPSON DX5 3200

Place of Origin CHINA
Certification CE
Model Number F1
Minimum Order Quantity 1 Set
Price USD6500-7500/SET
Packaging Details EXPORT CRATE
Delivery Time 7-10DAYS
Payment Terms T/T
Supply Ability 20 SETS PER DAY
Product Details
Head Type Micropiezo DX5 Or 4720 Printhead Gross Weight 350kgs
Max Printing Width 1.8m Head Quantity 3 Pcs Of 4720 Printheads
Application Poster/vinyl/banner/mesh/transfer Paper Boards Xtonic
Color CMYK Type Inkjet Printer
High Light

Stormjet F1 Eco Solvent Printer


180cm Eco Solvent Printer


DX5 3200 Stormjet Printer

Leave a Message
Product Description

1.8m Three Heads Stormjet F1 Eco Solvent Printer with EPSON DX5 3200



Stormjet F1 1.8m Width Triple-Head Eco Solvent Wide Format Inkjet Printer
Printhead Type: Epson Dx5
Resolution: 1440DPI
Head Clean: Auto cleaning, flash and Moisturizing
Type: Epson 4720
Resolution: 3200DPI
Head Clean: Auto cleaning, flash and Moisturizing
Quantity 3
Print Speed
*Tested on linear printing without feather function
2pass 60/h 2pass 118/h
4pass 45/h 3pass 80/h
6pass 31/h 4pass 60/h
8pass 24/h 6pass 42/h
Print Width 1800mm
Ink Type Type: Water-based ink(Dye or Pigment),
Eco Solvent Ink, Sublimation Ink
Type: Water-based ink(Dye or Pigment), Sublimation Ink
Print Media PP, PVC, Vinyl, Flex Banner, Backlit, Canvas, etc. Indoor advertising material, Transfer Paper
Rip Software Maintop6.0, Photoprint19, Onyx 19
Image Format JPG, TIFF, BMP, PDF, etc.
Computer System Win7,Win8,Win10
Transmit Port USB 3.0
Computer Cofigiration Hard Disk: 500G or more, GPU: ATI Mobility
Radeon, Memory: 4G or above
CPU: Intel 4 I5 processor or above
Optional Device Intelligent Dryer, Auto Feeding and Take-up System, Anti Collosion System
Working Environment Temp.:15-30, Humidity: 35-65
Power Supply 50/60HZ, 220V, 10A
Package Machine Size 3130*940*1080m
Machine Weight 300kg

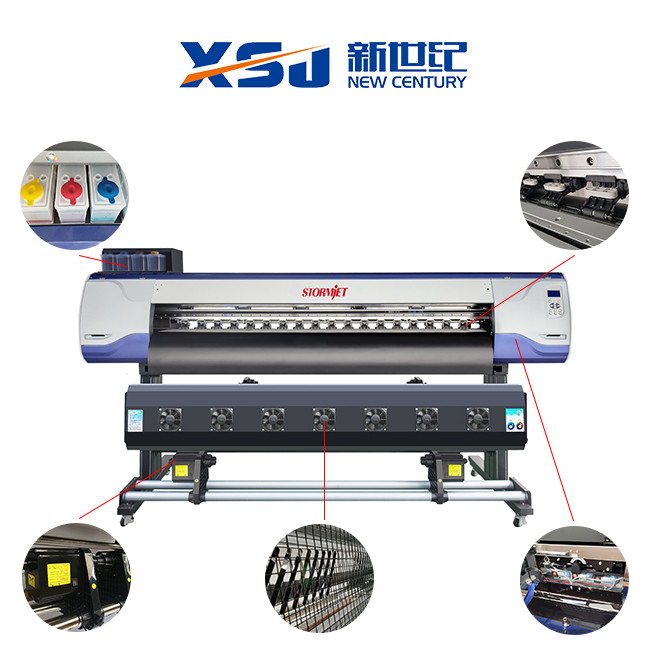

180cm Stormjet F1 Eco Solvent Printer With EPSON DX5 3200 0

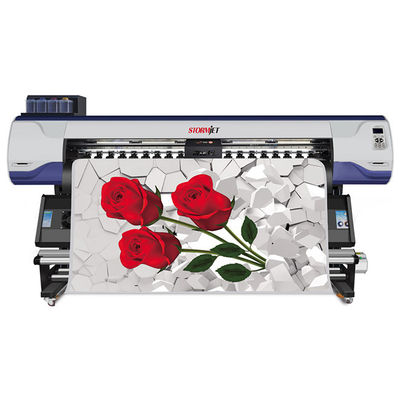

180cm Stormjet F1 Eco Solvent Printer With EPSON DX5 3200 1




1. The machine is compatible with the original Epson nozzles and the first, second, third, and fourth encrypted nozzles. It can be installed and used directly without changing the board.

2.  Support multiple printing modes: fog spray, feathering, sawtooth, uniform mode, etc., perfect experience for faster and higher precision printing quality.

3. Fine-tune the trolley frame to adjust the nozzle position according to different printing consumables.

4. The original imported THK linear guide has lower noise, longer life and stronger stability.

5. Use well-known brand-Leisai motor, high-precision drive, linear decoding, higher accuracy, smaller length error, and more stable operation.

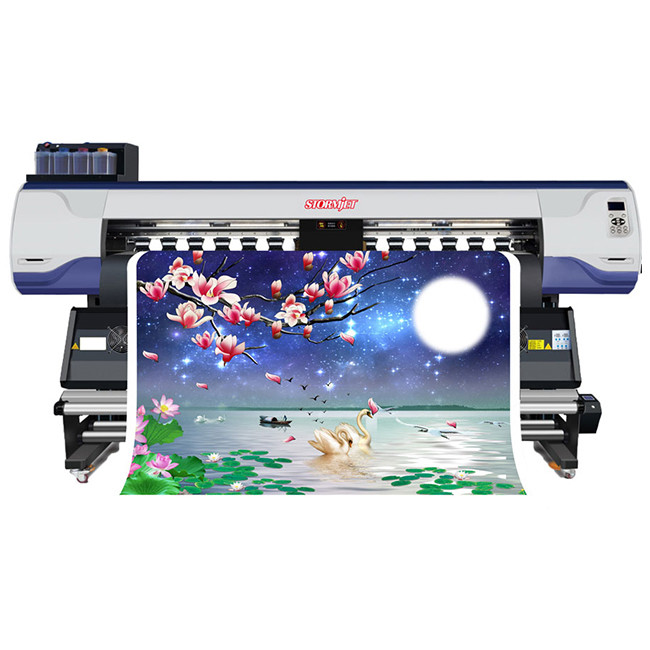

180cm Stormjet F1 Eco Solvent Printer With EPSON DX5 3200 2


1. The precision of printing table are controlled within ± 0.075mm. Make basical for high presison and quality printing.

2.  Anti Collision can protect operator’s hand and avoid heads connect with papers, to pro-long heads service life.

3. Independent R D double heads split & joint adjustment. Let heads vertical calibration is easy and convenient.

   Printing heads height can be adjust 2~10mm adopting different materials thickness.

4.  Super large capacity ink cartridges, beautiful appearance, support the continuous use of the ink supply system,

    and reduce the trouble of frequent ink filling during printing.

5. Precise inkjet control makes the print head print accuracy up to 1440dpi, even characters as small as 0.5 mm are clearly visible.

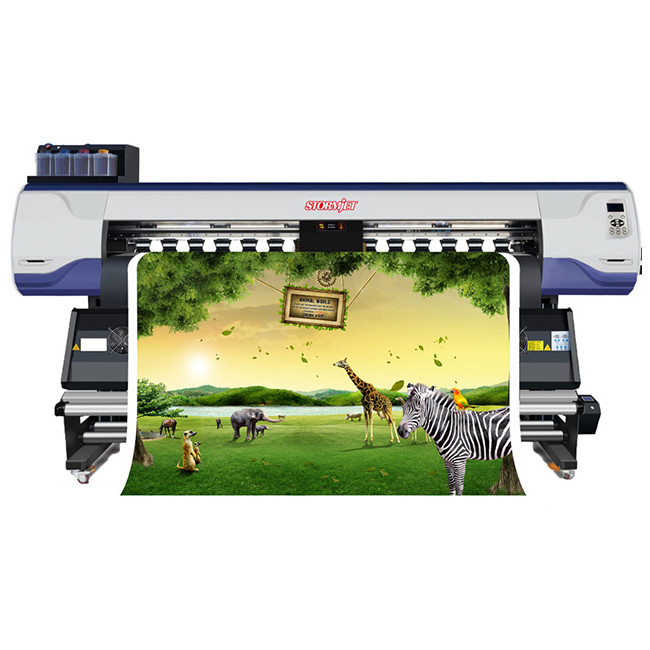

180cm Stormjet F1 Eco Solvent Printer With EPSON DX5 3200 3
