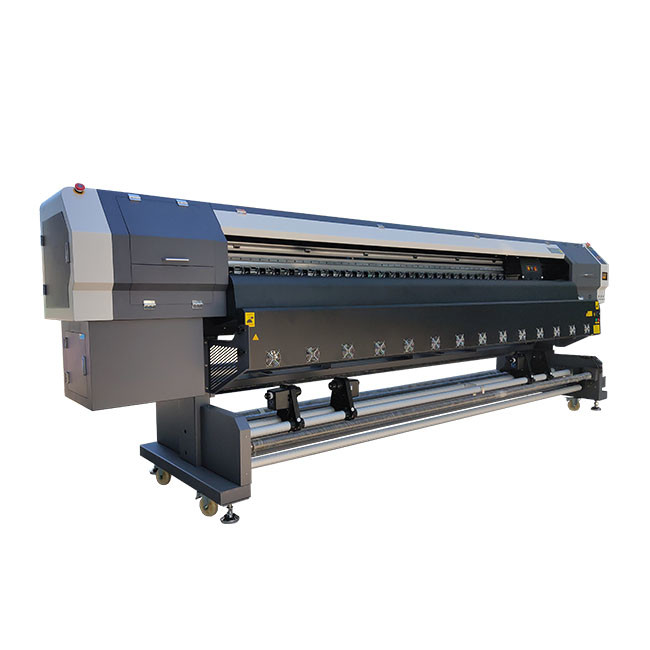

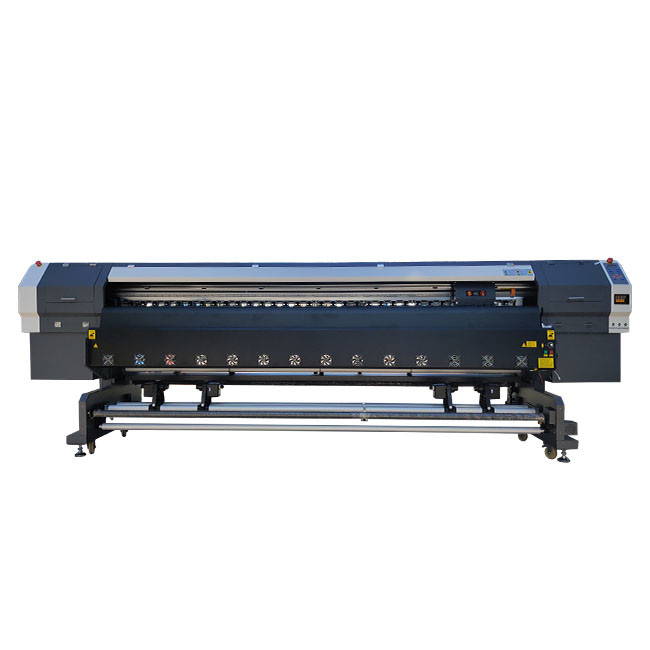

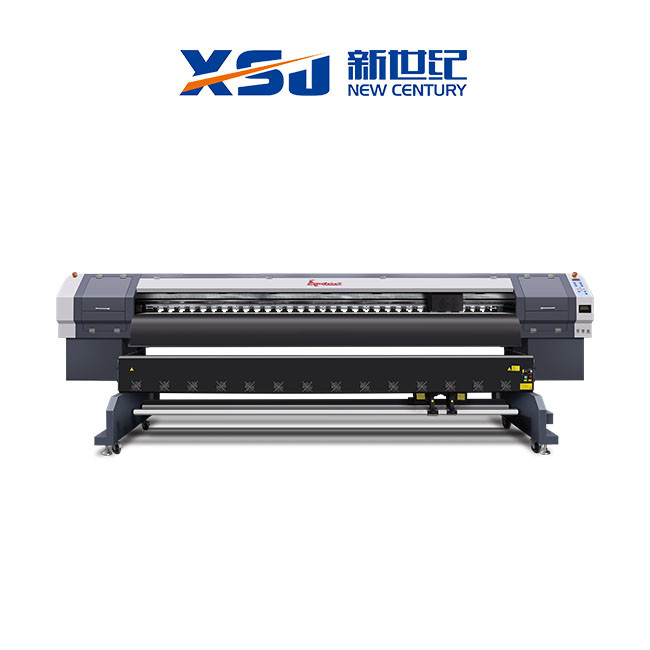

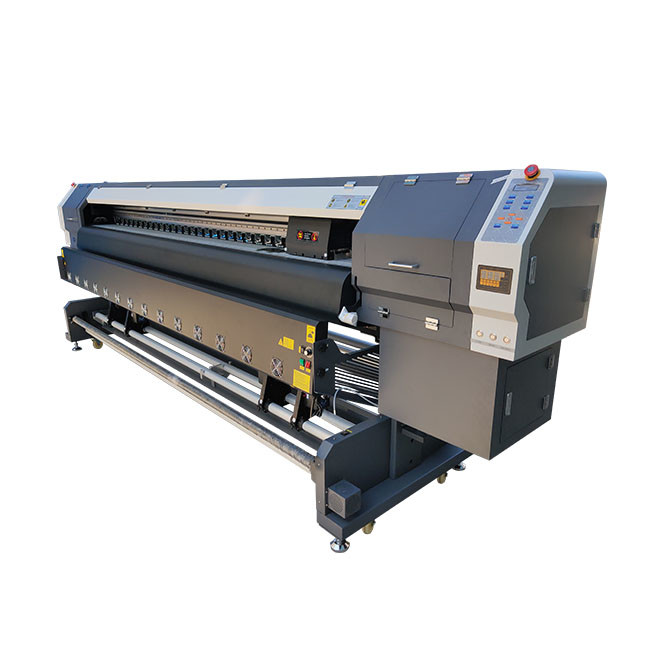

1440dpi Large Format Eco Solvent Printer
|Head||Original Dx5,EPS 4720||Max Printing Width Width||3.2MM|
|Head Quantity||2 Or 3||Ink||Eco Solvent Ink Water Based Ink|
|Ink Color||CMYK||Package||Export Crate|
|Application||Vinyl Printer, Poster Printer, Bill Printer, Sign Printer||Media Type||Roll To Roll|
|Rip Software||Maintop Photoprint19 ONYX19||Resolution||1440dpi 3200dpi|
|Warranty||12 Months||Max Speed||45 Sq/h|
1440dpi Large Format Eco Solvent Printer,
Large Format Eco Solvent Printer Dx5,
3200dpi eco solvent machine
2020 Chinese Large Format Eco Solvent Printer Dx5
2020 Chinese large format eco solvent printer dx5
|Printhead Technology||EPSON Micropiezo DX5/ 4720 printheads|
|Ink Type||Water Based; Eco Solvent Based|
|Colors||Double Four Color|
|Number of Nozzles||DX5 head (180*8 nozzles) 4720 head (400*8nozzles)|
|Height of Head Print||2-5 mm (Variable)|
|Media Feeding Method||Multi-Pinch Rollers Feeding System|
|Color Management||ICC Based, Density & Curves adjustment|
|RIP Software||MAIN TOP 6.0/PHOTOPRINT 19/ONYX19|
|Computer System||Windows7 and Windows8|
|Power Supply||50HZ/60HZ, 220V, 10A|
|Maximum Printing Width||3200mm|
|Printing Resolution & Speed|
1. Two sets of feeding & take-up unit are equipped, as for heavy media, which can be placed on roller to feed it.
2. Multi-row pinch rollers made of Dupont rubber ensure the media move accuratly.
3. Namebrand Japanese THK linear guide rail makes carriage movement smooth and low noise.
4. Intelligent infrared heating & blowing external dryer accelebrates media drying speed, meanwhile
heating and printing can be synchronous to reduce the energy waste.
5. Continuous ink supply and convinience on tank maintemance.
6. Leadshine brushless integrated x&y motors are used on both X and Y dir. giving accurate movement controlling.
1. 3.2m wide format output, support double-head or triple-head printing to meet the different printing demand.
2. Adopt Epson lastest micropiezo printhead with VSDT (variable size of dot technology), the smallest
droplet is 3.5pl, the largest droplet is 15pl ensuring excellent quality output.
3. Support eco solvent ink and water-based ink, which is applicable on both indoor and outdoor printing.
4. Ethernet data transmission port, data transmisssion is super faster than USB port, which reduce the
pause of carriage in both ends.
5. Intelligent feather function eliminating BANDING effectively in printing,improving printing quality obviously.
6. Troubleshooting is built-in Pcs PrintExp., which is convinient and helpful to do daily maintenance.
7. Featured auto head cleaning function, effectively eliminates nozzle clogging and improve prinitng quality.
8. Multiple RIP softwares (Maintop, Photoprint, Onyx, Print Factory) are optional to meet different operator's meets.
