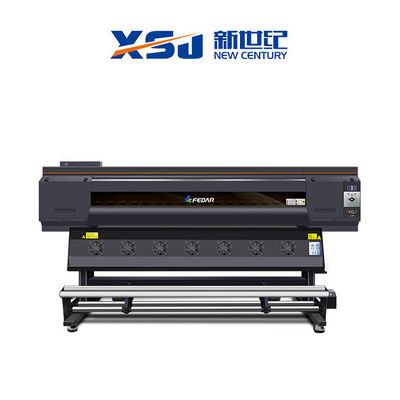

120Sqm/H Fedar FD5193E EPS3200 Sublimation Printer

Place of Origin China
Brand Name Fedar
Certification CE
Model Number FD5193E
Minimum Order Quantity 1 Set
Packaging Details Export Wooden Crate
Delivery Time 7-10 Work Days
Supply Ability 200 Per Month
Product Details
Printhead Type Epson I3200-A1 Quantity 3 Pcs
Printhead Resolution 3200DPI Printing Speed 120Sqm/h
Print Width 1900mm Ink Dye Ublimation Ink,Pigment Ink
Media Transfer Paper,Poster Paper RIP Software Maintop,Photoprint,Neostampa,Onyx,etc
Warranty 12 Months
High Light

EPS3200 Sublimation Printer


Fedar FD5193E Sublimation Printer


120Sqm/H Sublimation Printer

Leave a Message
Product Description

                   Fedar FD5193E Tansfer Paper Printing Machine

FD5193E Transfer Paper Printing
Printhead Epson I3200-A1 Nozzle Quantity 3200
Printhead Quantity 3 Print Width 1900mm
Ink Color CMYK Print Height 2-5mm
Resolution 360*1200/360*1800/
Media Transfer Auto Tension Taking-Up Meida Device
*Tested on linear printing without feather function
2pass 120㎡/h Drying Method Extra Dryer Device
3pass 85㎡/h Ink Supply Method Siphon Positive Pressure Ink Supply
4pass 65㎡/h Head Moisture
Auto Head Cleaning and Moisturize
6pass 45㎡/h Print Media Transfer Paper
Ink Type Sublimation Ink,
Water based Pigment Ink
Gigabit LAN
Computer System Win7, Win8, Win10(Professional) File Forms TIFF, JPG, EPS, PDF, etc.
Operate Environment Temp.:15℃-30℃, Humidity: 35℃-65℃ RIP Software NeoStanpa,Ergosoft,
Package Size 3250*960*1170mm Power Supply 210-230V, 50/60HZ, 16A
Print Power: 1000W
Dryer Power: Max.3500W
Computer Configuration Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
Memory: 4G, CPU: Inte I5/I7, G-Ethernet
Standard Configuration Ink Level Alarm System




1. High Precision Printhead

3 Epson3200 printhead,2 pass speed can reach up to 120sqm/h.

2. Advanced Capping Station Equipped with advanced intelligent auto printhead cleaning and moisturizing device,

which can pump ink well and keep the ink flow fluently.

3. Intelligent Ink Starving Alarm Reduces the tediousness of frequently checking the remaining amount of ink and

at the same time reminds to add ink in time to ensure the continuity of printing work.

4. Intelligent Foggy Printing&VSDT Printing Unique two-dimension intelligent foggy and wave-foggy function and

VSDT variable droplet technology,improve printing quality obviously.

5. Stable Media Feeding and Take-up System Convenient and fast,the printing media is quickly stored,equipped

with auto paper measurement and anti-rubbing function,the consumables are warped,printing is automatically paused

to prevent scratching the printhead.

6. Wide Application With the help of heat transfer machine,printed images can be transferred to many different

non-elastic material,such as polyester,chiffon,silk and flag banner.No limit on the patterns makes it a good choice in

decoration,garment and advertising field.




120Sqm/H Fedar FD5193E EPS3200 Sublimation Printer 0

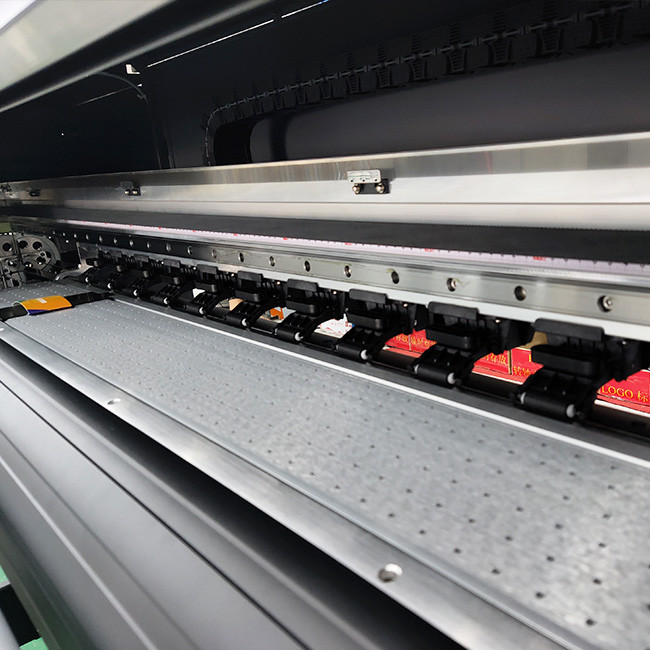

Specially Designed Car:

The position of the print head can be adjusted according to different printing medias, and anti-collision devices at

both ends to give the print head more comprehensive safety protection.

THK Mute Guide Rail:

Imported THK mute linear guide rail imported from Japan to effectively reduce the resistance and noise during the

operation of the printer.


120Sqm/H Fedar FD5193E EPS3200 Sublimation Printer 1

Leadshine Motor:

The two-way Leadshine brushless motor has higher accuracy, smaller length error and more stable performance.

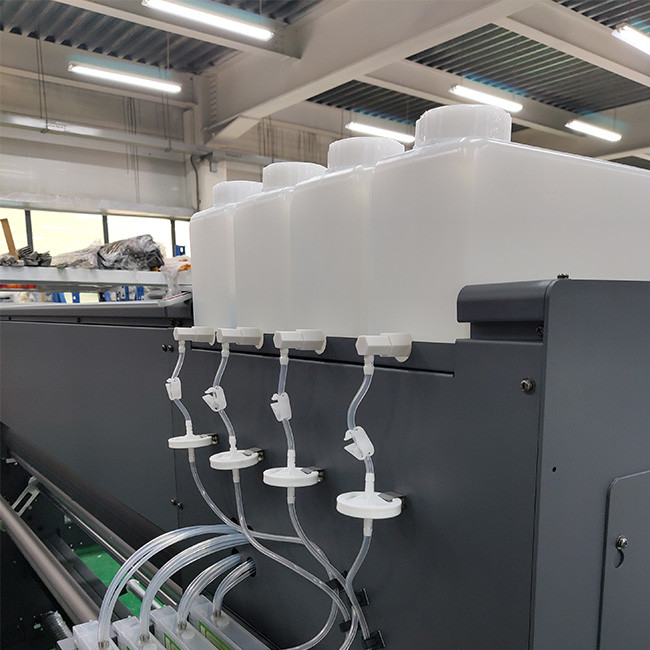

Large Capacity Ink Reservoirs:

Four units of 3L super large capacity ink reservoirs provide ink independently and continuously, which guarantees

the long-term continuity of ink output.


120Sqm/H Fedar FD5193E EPS3200 Sublimation Printer 2

Intelligent Air-heat Dryer:

Intelligent air-heat integrated dryer, two-stage heating, middle warm air and smart start-stop technology, ensure

the drying performance and more energy-saving at the same time.

Germany IGUS Ink Chain:

Imported Germany IGUS ink chain,high quality, to ensure the good completion of printing work.


120Sqm/H Fedar FD5193E EPS3200 Sublimation Printer 3

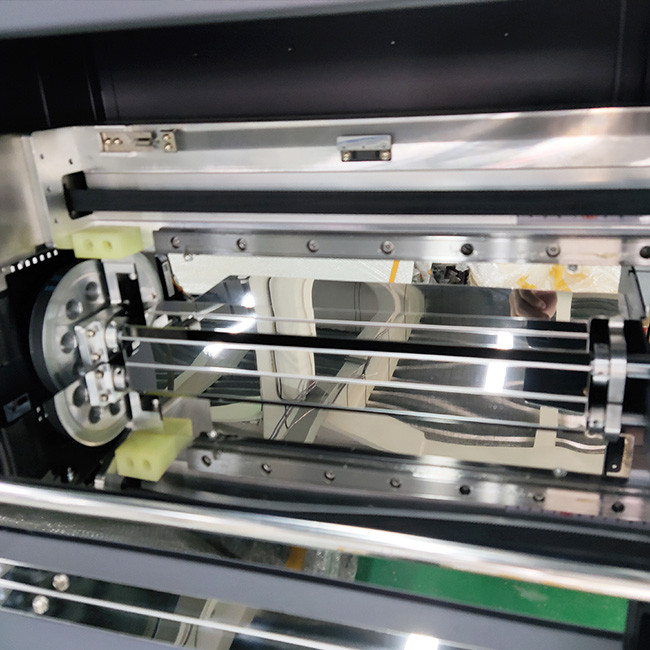

Fluororubber Pressure Roller:

US fluororubber pressure roller prevents static electricity from flying ink, prints more accurately and rejects wrinkles.

Two-level Ink Supply System:

Adopt two-level ink supply system, continuous printing for a long time to ensure the output quality of the picture.



120Sqm/H Fedar FD5193E EPS3200 Sublimation Printer 4
                 Sportwear                                    Indoor Decoration                                   Bedding

120Sqm/H Fedar FD5193E EPS3200 Sublimation Printer 5
                     Bags                                   Underwear and swimwear                               Socks
