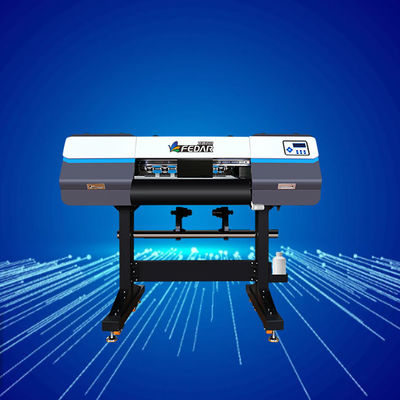

Fedar FD70-2/FD70-4 Dtf Digital Printing Plotter T Shirt Printers

Place of Origin CHINA
Brand Name FEDAR
Certification CE
Model Number FD70-2/FD70-4
Minimum Order Quantity 5 Set
Packaging Details EXPORT CRATE
Delivery Time 7-10 DAYS
Payment Terms T/T
Supply Ability 20 SETS PER DAY
Product Details
Print Head Epson I3200-A1 Printheads Color CMYK+W / 2CMYK+2W
Ink Supply Cycle White Ink Supply System Media Feeding Normal Feeding System
Printheads Quanyity 2/4 Pcs
High Light

Dtf Digital Printing Plotter

,

Fedar Digital Printing Plotter

,

650mm T Shirt Printers

Leave a Message
Product Description

Fedar FD70-2/FD70-4 Dtf Digital Printing Plotter T-Shirt Printers

FEDAR FD70-2 textile printing design, can be used with shaking power machine, transfer the pattern to the clothes,

Shoes, bags, etc.


Fedar FD70-2/FD70-4 Dtf Digital Printing Plotter T-Shirt Printers Parameters
FD70-2 Heat Transfer Film Printer
Printhead
Epson I3200-A1
Nozzle Quantity
3200
Printhead Quantity
2
Print Width
650mm
Ink Color
CMYK+W Pigment Ink
Print Height
2-5mm
Resolution
360*1200/360*1800/
720*1200/720*1800(DPI)
Media
Pyrograph Film

Speed
*Tested on linear printing without feather function
2pass
98㎡/h
Drying Method
Extra Dryer Device
3pass
64㎡/h
Ink Supply Method
Siphon Positive Pressure Ink Supply
4pass
50㎡/h
Head Moisture Method
Auto Head Cleaning and Moisturize
6pass
32㎡/h
Ink Cycle
Auto White ink cycle
Ink Type
Pigment Ink
Transmission
Interface
Gigabit LAN
Computer System
Win7, Win8, Win10
(Professional)
File Forms
TIFF, JPG, EPS, PDF, etc.
Operate Environment
Temp.:15℃-30℃, Humidity: 35℃-65℃
RIP Software
NeoStampa,Ergosoft,
Onyx,Photoprint,Maintop

Package Size

1200*960*1000mm

Power Supply
210-230V, 50/60HZ, 16A
Print Power: 1000W
Dryer Power: Max 3500W
Computer Configuration
Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,Memory: 4G, CPU: Intel I5/I7, G-Ethernet




Fedar FD70-2/FD70-4 Dtf Digital Printing Plotter T-Shirt Printers Feature

* Double printheads height can be arbitrarily adjusted, flexible to deal with different thickness of printing materials,

Independent design and development.

* Equipped with advanced intelligent shower head cleaning and moisturizing device, providing safety and convenience

Print head cleaning and maintenance function.

* More stable operation, longer service life, lower noise, higher resolution, less length error.

* American fluorine rubber press roller to prevent static electricity.

* 2CMYK+2W print mode.

Fedar FD70-2/FD70-4 Dtf Digital Printing Plotter T Shirt Printers 0



Technical Details:

Fedar FD70-2/FD70-4 Dtf Digital Printing Plotter T Shirt Printers 1

APPLICATION

Design for textile printing,It can be used with a shaking power machine,and it can transfer the design to the dress,shoes,bags and so on.
